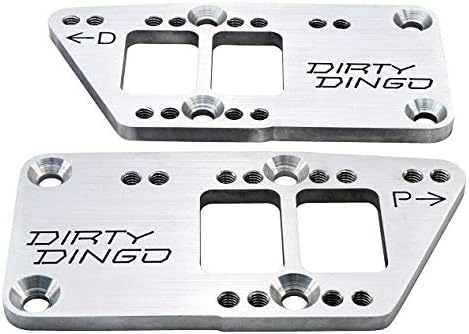

Dirty Dingo LS Conversion Swap Plate LS Multi Hole LS1 LS2 LS3 LS6 LS7 Billet Aluminum 58-72

Dirty Dingo LS Conversion Swap Plate DD-LS-DOUBLE-D-A Double-D 6061-T6 billet aluminum LS engine adapter plates are designed as a true "bolt in" adapter plate for installing the 1997-2015 Gen III/IV LS series engine into 1958-72 GM cars and 2WD GM Trucks, and 1962 to 1991 Corvette. Corvette 1958 to 1961 will require a frame stand to use a GM three bolt mount. These conversion plates will place your LS engine in the correct position when swapping from a SBC or BBC engine and have four different motor mount placement positions. The first set of holes position the LS engine in the original bell housing position, 11/16 inch forward, 1 11/16 inch forward, and the last set position the LS engine 2 1/4 inches forward. * These mounts will clear our low mount A/C DD-LS-AC-LM. * These mounts will not clear low mount GTO rear alternator brace. * Will not fit on 1967-72 4X4 Chevrolet GMC trucks. These trucks require a complete front cross member.

• CNC Billet Aluminum
• For installing the 1997-2015 Gen III/IV LS series engines
• True "bolt in"
